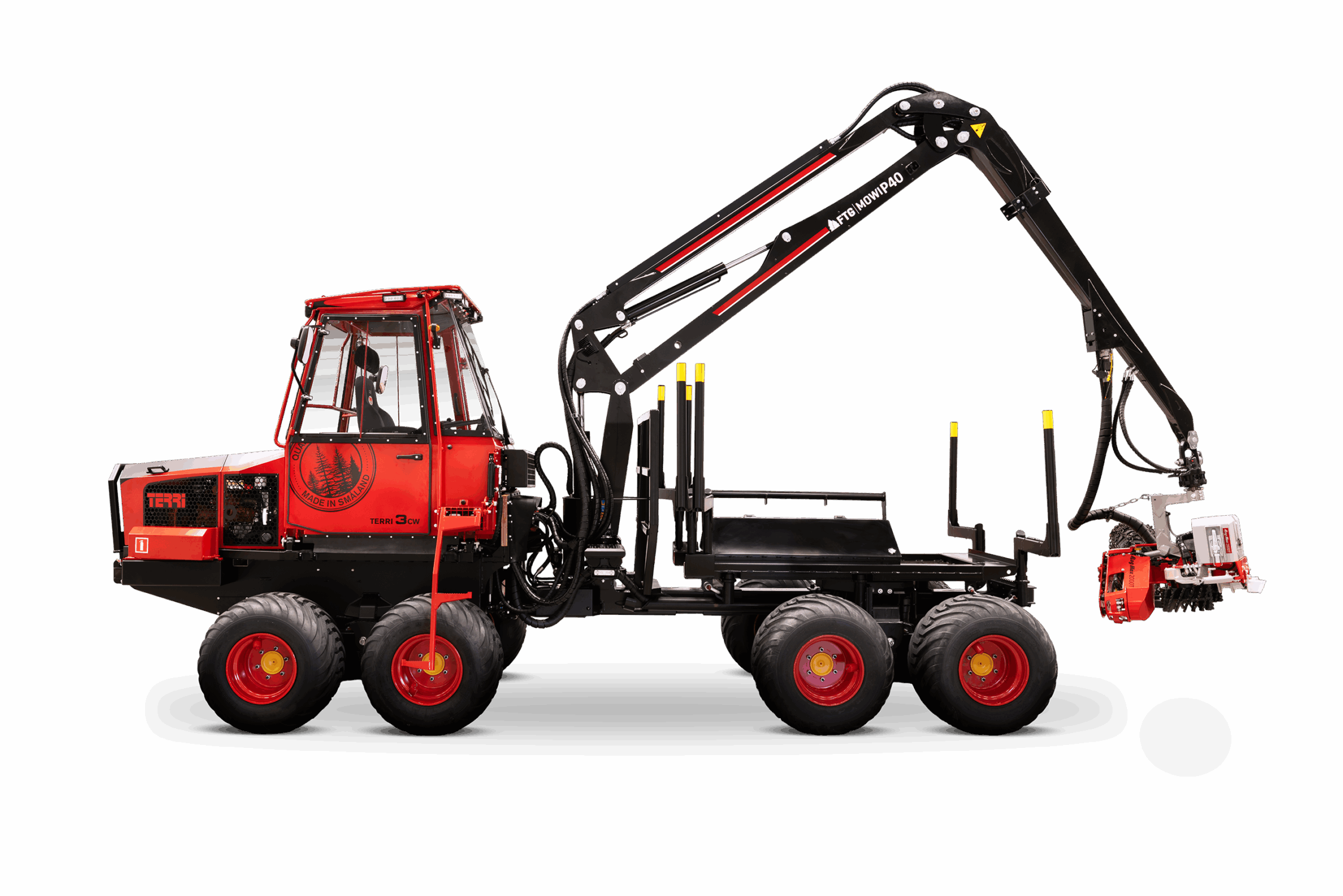

Terri 3CW is a professional combi machine designed to both harvest and forward timber in the forest. The machine combines high capacity with low ground impact and is built to perform reliably, day after day, in varying terrain.

Terri 3CW

Terri 3CW is a professional combi machine designed to both harvest and forward timber in the forest. The machine combines high capacity with low ground impact and is built to perform reliably, day after day, in varying terrain.

Capacity and drivetrain
The engine is a 3.6-liter four-cylinder CAT delivering 75 horsepower and 318 Nm of torque at 1400 rpm. It is equipped with a particulate filter to reduce emissions and offers comparatively low fuel consumption per engine hour. The engine is approved for use with the renewable fuel HVO.

The hydraulic drivetrain with Terri’s AWS control provides smooth power transfer and strong traction in all conditions. With a tractive force of 88 kN and three gear ranges, Terri 3CW delivers excellent traction in off-road environments as well as efficient transport speed.

Stability and construction
The machine is eight-wheeled and built around an articulated center frame with a 45-degree steering angle. Each bogie is equipped with two hydraulic wheel motors, providing both strong pulling power and excellent mobility.

Terri’s low center of gravity contributes to high stability in uneven terrain or when working on slopes. The robust chassis and the eight driven wheels give the machine predictable behavior and a calmer driving experience for the operator.

Terri 3CW can easily be converted from harvester to forwarder in approximately 15 minutes by removing two counterweights from the rear section and swapping the harvester head for a grapple by releasing the quick couplings on the front of the crane. As a forwarder, the machine handles up to 6 tonnes of timber, and as a harvester it offers a cutting capacity of up to 41 centimeters tree diameter.

Mobility and terrain performance
With 70 cm of ground clearance and eight 500/50 x 17 wheels, Terri 3CW reaches areas where many other machines struggle. The combination of wide tires, balanced weight distribution and the hydraulic bogie design allows the machine to move gently even on soft ground.

The unique Terri AWS transmission system automatically distributes drive power to both the front and rear axles for optimal grip, and when needed, tracks and tire chains can be mounted for even greater traction and stability.

The active steering and proportional oil distribution provide smooth, precise movements even in narrow thinning corridors.

Operator environment and control

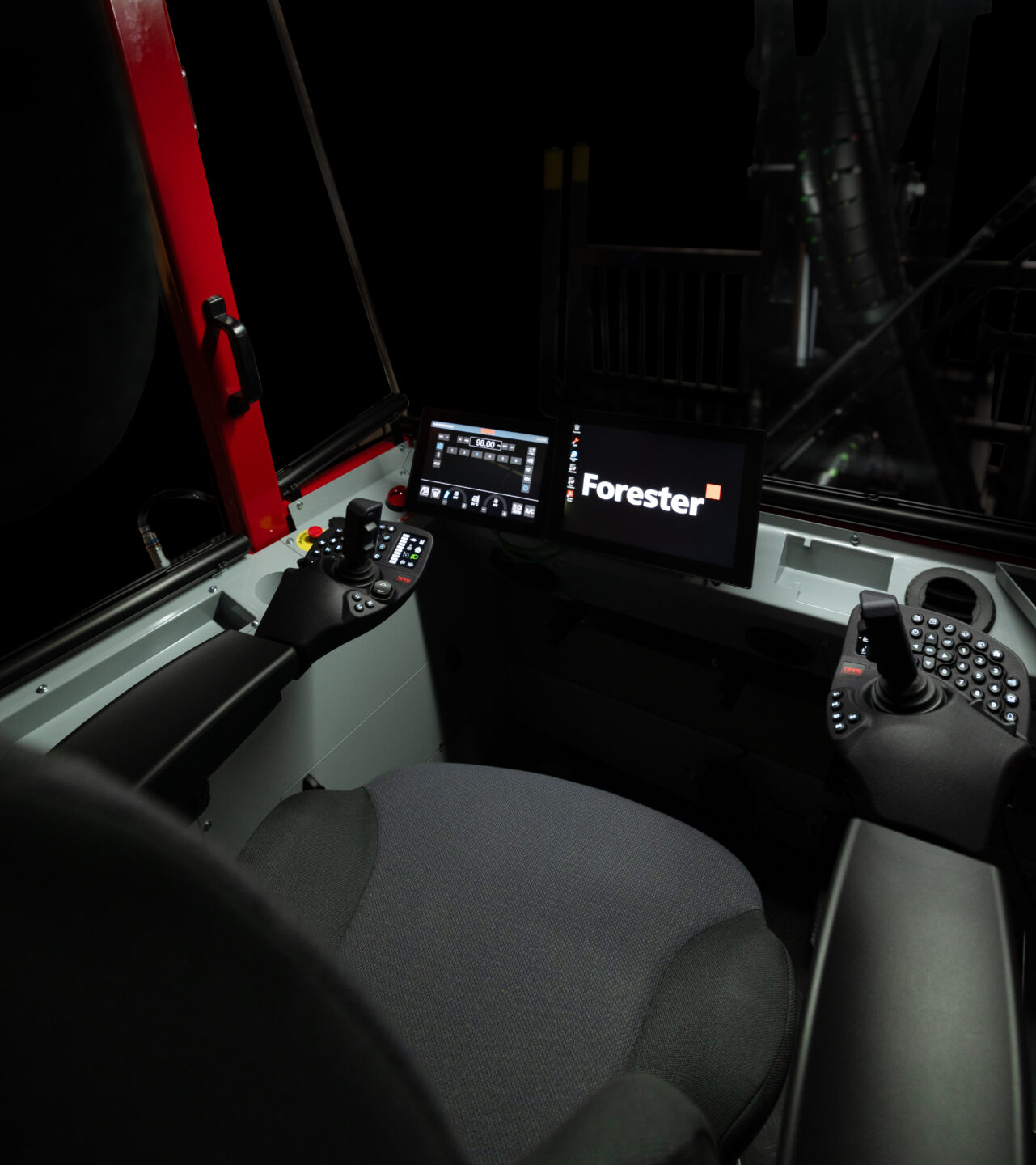

Terri’s spacious safety cab meets the latest standards and is mounted on vibration dampers to provide a comfortable operator environment. It is well insulated with low noise levels, and the elevated seating position ensures excellent visibility.

The seat is ergonomically designed, and the electrically braked, rotating seat base makes it easy to change driving direction. Joysticks and controls are integrated in the armrest for smooth operation of the machine, the timber grapple, the harvester head and the crane.

The Dasa computer with color display provides a clear overview of the machine’s systems and allows personalized settings for each operator.

Dimensions and application
The compact dimensions make the machine easy to maneuver even in dense thinning stands.

  • Length: 6 643 mm
  • Width: 2 050 mm
  • Transport height: 3 100 mm
  • Ground clearance: 700 mm

The agile design and solid construction make Terri 3CW a reliable tool for stand-based thinning and other assignments where low ground disturbance and high mobility are critical.

Frequently Asked Questions about Terri

  • You have the possibility to choose between tracks and skid protection. Here, in our product catalog, you can find all options.

  • The Terri AWS is a fully automatic solution that ensures optimal traction regardless of the terrain. It replaces the classic locking differential, and it presents a noticeable advantage on terrains that are steep or have poor bearing capacity. The system is sharper than the previous technology and it enables you to get more power out of each wheel. As a driver, you never need to decide if or when to switch on the AWS; everything happens automatically.

  • Terri´s machines thrive with first and second thinning and when driving on sensitive ground. Thanks to its first-rate range, it does a perfect job even when the terrain is uncompromising.

  • Compared to its predecessor, Terri 3 is upgraded with 20 innovations. These are for example updates in the cabin, in the design and under the bonnet. Fully automatic optimal traction (Terri Automatic Wheel System, AWS), stronger and more fuel-efficient engine and a 24-volt electrical system.

  • Terri 3 is the third generation Terri machine.
    CW: combi
    FW: forwarder
    HW: harvester

  • The mastermind behind these forestry machines is Småland company Alfing i Älmhult. Almost all production takes place in a dedicated factory, which means shorter lead times and a high level of expertise in everything to do with the machines.

  • Get in touch with your sales representative here on the website.

  • Your Terri machine, your choice. We assemble your dream machine based on your requirements, needs, and wishes. We put you in the driving seat and provide you with masses of choices when it comes to cranes, comfort, and additional equipment.
    Have a look in our Product Catalogue to see all optionals.

Terri 3CW Technical data

Engine
  • Diesel engine:
  • CAT 3.6
  • Power:
  • 55,4 kW
  • Number of cylinders:
  • 4
  • Torque:
  • 318 Nm/1400 rpm
  • Diesel tank volume:
  • 100 l
Transmission
  • Transmission:
  • Fully hydraulic
  • Max. steering angle:
  • 45º
  • Gears:
  • 1, 2, 3 & reverse
  • Max. speed:
  • 13/17 km/h
  • Wheel dimension:
  • 8 x 500/50 x 17
Hydraulic system
  • Hydraulic system:
  • Danfoss
  • Tank volume:
  • 115 l
  • Pump capacity:
  • 195 l/1500 rpm
Electrical system
  • Electrical system:
  • 24 V
  • Battery:
  • 2 batteries x 100 Ah
  • Generator:
  • 100 A
Crane
  • Crane:
  • Mowi
  • Model:
  • P40
  • Lifting torque:
  • 37 kNm
  • Slewing torque:
  • 11 kNm
  • Slewing arc:
  • 220º
  • Reach:
  • 6,2 m
  • Lifting capacity at max. reach:
  • 480 kg

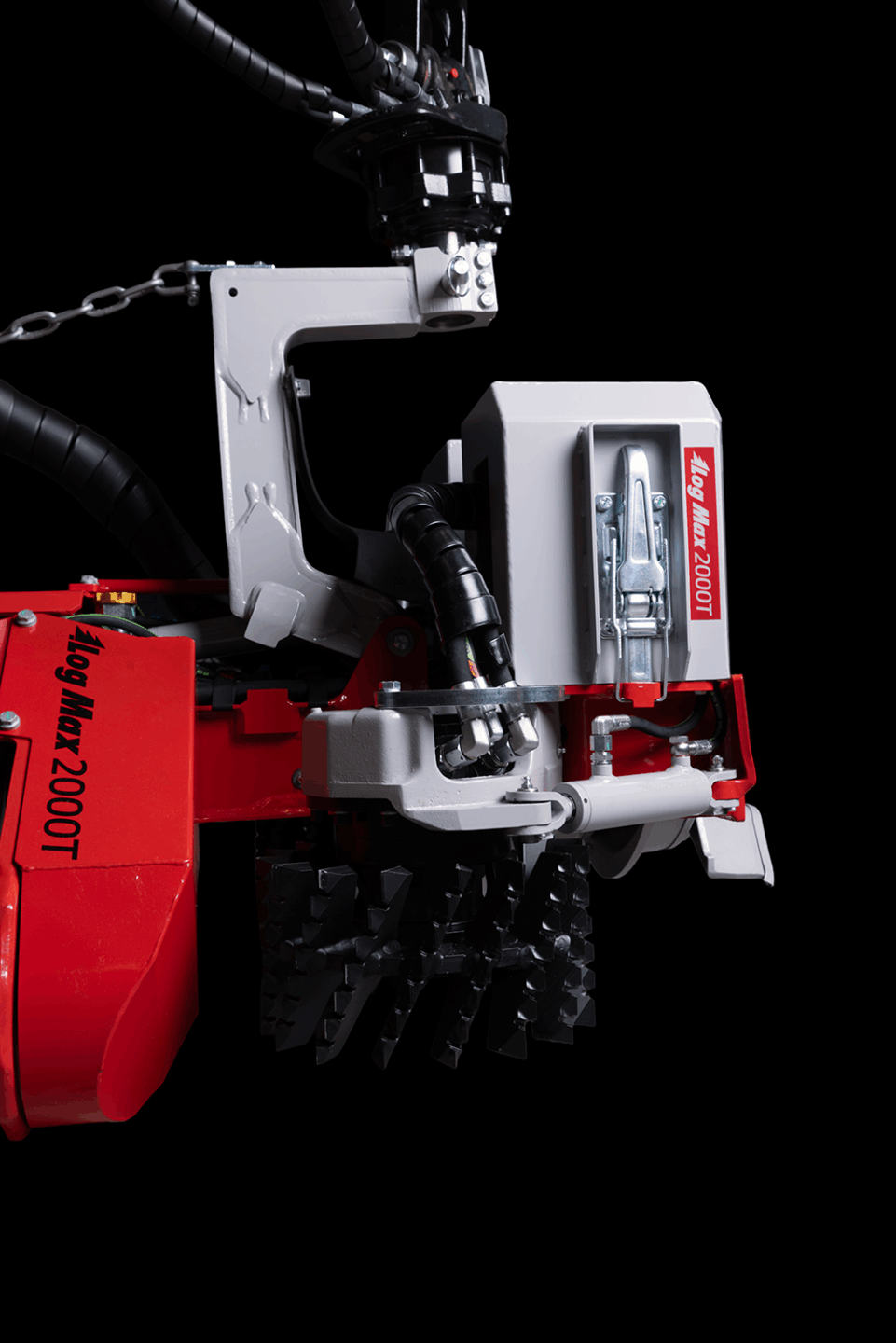

Harvester head
  • Harvester head:
  • Log Max
  • Model:
  • LM 2000T
  • Feed rate:
  • 4,1 m/sek
  • Feed force:
  • 14,8 kN
  • Number of feed wheels:
  • 2
  • Max. opening:
  • 410 mm
Chassis
  • Service weight:
  • 8 300 kg
  • Length, standard:
  • 6 000 – 6 700 mm
  • Width:
  • 2 050 mm
  • Highest height:
  • 3 100 mm
  • Ground clearance:
  • 700 mm
  • Loading area:
  • 2,45 m2
Download Product Sheet

TWO MACHINES IN ONE

With a combi machine from Terri, you get to experience the best of two forestry machines all in one package. In just 15 minutes you can easily turn your harvester into a forwarder, or vice versa. And thanks to a powerful crane and equally powerful harvester head, both tasks are guaranteed to be performed well. Sometimes that Småland ingenuity knows no bounds.

FANTASTIC GROUND CLEARANCE

Our wheeled machines have an unbelievable ground clearance of 70 centimetres. That is the same as larger forestry machine models. Thanks to this, everyday work is made considerably easier, and you can navigate tougher and trickier terrain without a second thought or it affecting the work in the slightest. We are talking about the absolute best navigability.

Terri AWS

Thanks to Terri AWS (Automatic Wheel System), traction, power and manoeuvrability are automatically guaranteed. The system quite simply generates more power and the right amount to each wheel and all you as a driver have to do is focus on driving. Terri AWS is our own invention, which we are very proud of and pat ourselves on the back for.
